鋁新木 | 高結構力 | 創意無限

鋁新木AluCoWood 二十多年來塑木(WPC)的發展歷史,一直在討論兩種材性(木材+塑料)之間的關係,藉以創造一種全新的原物料來取代純木或純塑。但一直無法突破塑化產品的熱塑問題,使得WPC材料處於一種不穩定的使用狀況,而退縮了WPC的應用發展。
當眾多塑木品牌出現在市場上,沂可木 努力擺脫塑膠產品的形象與質感而脫穎而出,但在戶外應用實例卻比不上木材的多變性及施工的便利性尤其是結構問題。產品穩定性,安裝施工便利性困擾著使用者,我們形容為有皮無骨的建材。
為解決結構性不足,變形等問題,眾多塑木品牌利用WPC中空腔體特性,在結構樑柱等中空位置加入高強結構性的材質,如鋼鐵鋁木等.雖然解決了WPC的結構強度問題,因為施工界面不同需跨不同工種及工具,來完成一工程,因此產生時間、人工、五金...等成本增加。
本系統原創理念的中心思考為 -保留木材質感與觸感的前提下將鋁新木系統型材成為木材或鋁材一樣的原材料,使用者可以依需求選擇標準尺寸規格的鋁木原材料做設計或施工成各種產品,如:遮陽格柵、牆面、天花造型、欄杆、花架、傢俱....等所有木材可做成的產品。成為實質取代木或成為木的新科技建材。



       For the past 20 years, the history for development of wood plastic composite materials had been evolving around the discussion in the properties and relationship of two types of materials - wood & polymers and how to create a new and durable material to substitute them. But there is little break through to solve some of the problems found in thermoplastics. The continuous usage of wood plastic composites in these unstable conditions had limited the continuous development in applications.
       There are many different wood plastic composite brands and materials available in the market. E-Core Wood, with its unique woods like surfaces and does not look like plastics, has been an outstanding alternative to wood. But although relatively easy to use, its application is still not comparable to the versatility of wood and wood application in the building and construction industries. Product stability and ease of installation are main issues with the users. This generation of products are term with skin but no structure.
       Due to insufficient strength and product deformation problems, many different wood plastic composite brands add high-strength structural materials such as iron, steel, aluminium and wood through the hollow cavity of wood plastic composite materials. While addressing the issue of structural strength in the wood plastic composite, because wood and metal are handled by different trade specialist and different types of construction interface, tools may be required to use. To complete the project, the duration, labour and hardware may vary greatly and result in the increase in cost.

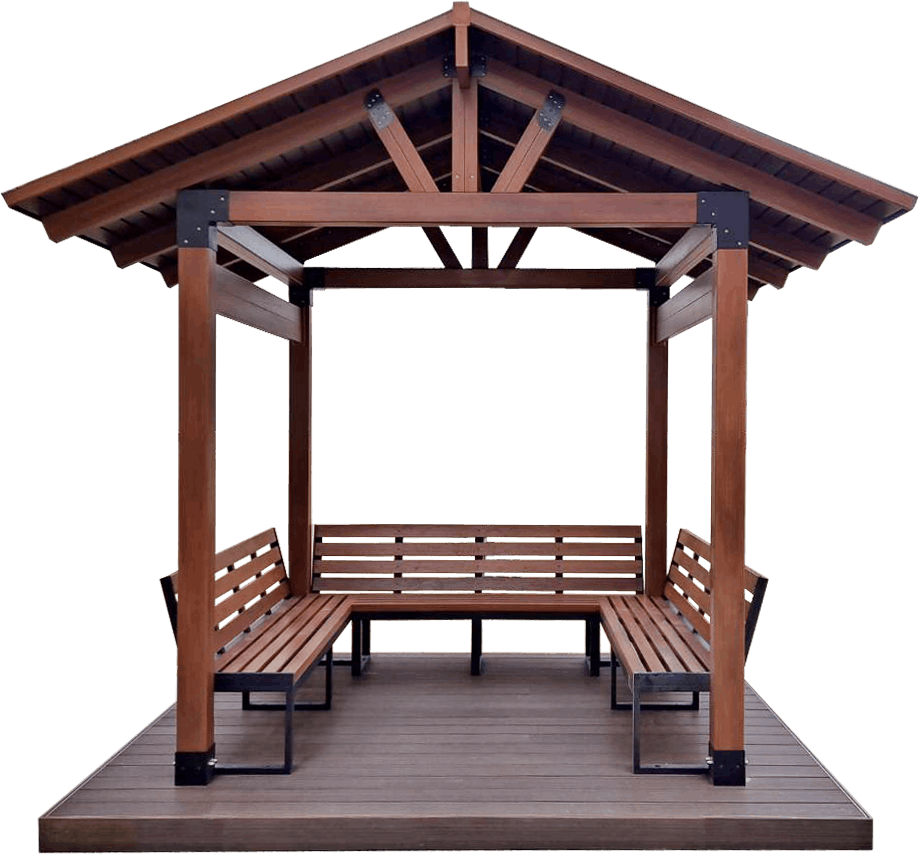

       Based on our original system concept ideas - For future development, the design for other systems will centre around this original concept, retaining the texture and visual of wood in the wood plastic composite and embedding with aluminum profiles. The customers could use the standard products and design new system base on the individual requirement in terms of dimension, size, shape and installation such as sun shade, wall decoration, ceiling, pergola, furniture… etc and any products which are made of wood. This new technological building material concept not only will replace wood and look like wood.


AluCoWood - Features

...
Vibrant beauty
◆Unique wood grain texture, appearance resembles the beauty and aesthetic of natural wood
◆Weathering changes of color resemble closely to natural wood
◆Conceal hardware accessories, provide aesthetic visual effects
◆Solve the unnatural appearance of traditional aluminum stained and powder-coated wood colour paint surfaces
◆Large range of product categories, unlimited in design

...
Environmental Safety
◆Water resistance, corrosion resistance
◆Fire and flame retardant properties

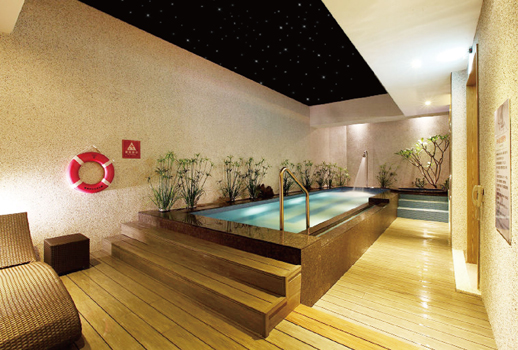

◆Resistance to acid & alkali (suitable for application in spa, swimming pool, bathroom)
◆Superior weather ability, do not deteriorate, crack or brittle
◆Tested accordance to SGS testing with formaldehyde and lead contents complied to standard

...
Smart Energy Saving
◆Promote energy-saving effect with thermal insulation and heat preservation properties of aluminum profiles (lower thermal conductivity)
◆Stable quality, long service life, reduce wastage of resources

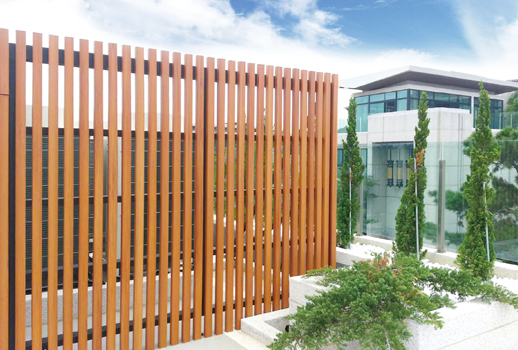

◆Sun shade grilles series satisfy window opening, ventilation, sufficient level of sun lighting, allowing high wind pressure reduction and shading effect, enhance energy-saving
◆Decking series effectively absorb ultraviolet light & radiant heat, reducing discomfort from reflection of sunlight
◆Can do maintenance by painting (different from other wood plastic composite)

...
Easy Installation
◆Clip-on structure make installation simple, fast
◆Can nail, plane, saw ... easy to install, reduce installation costs, economical and affordable
◆Low maintenance costs

...

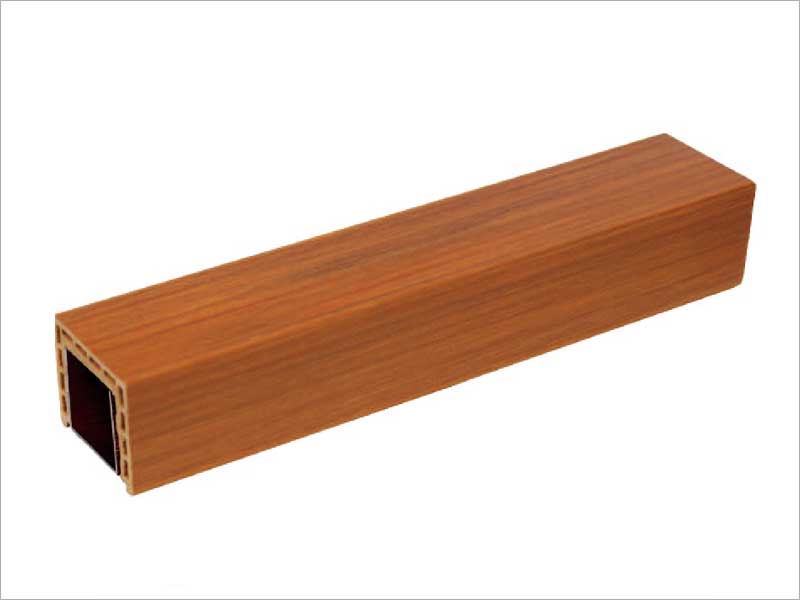

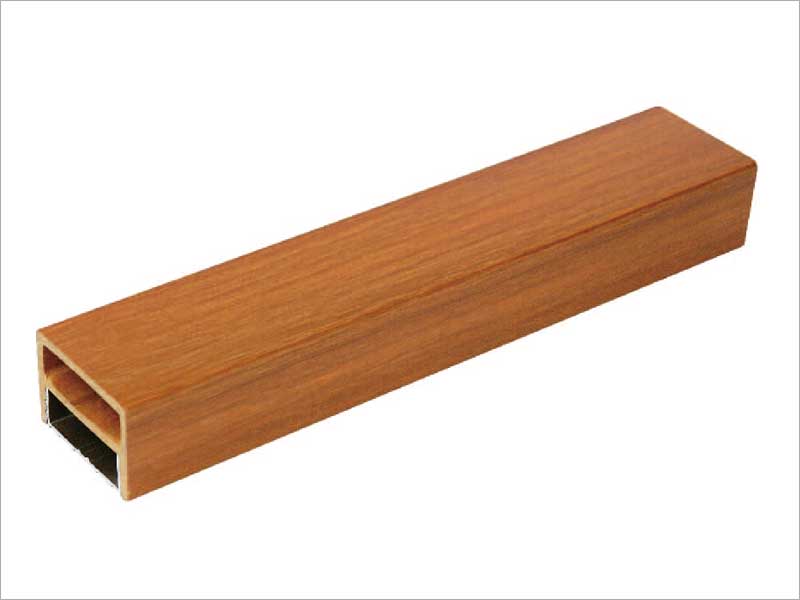

型號:M6040
尺寸:60mm * 40mm
長度:300cm
(格柵裝飾條6040*1+鋁M60*1)
適用範圍:格柵、造型飾板、造型天花等.


Product Name:M6040
Dimension:60mm * 40mm
Length:300cm
(Profile 6040*1 + Aluminum base M60*1)Range of application : Grille, Decorative Trim Molding, Ceiling Molding etc.

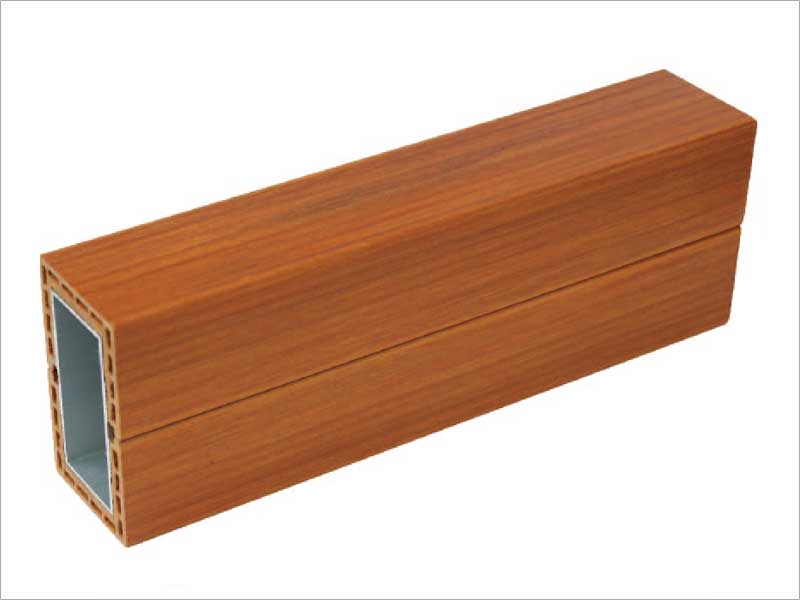

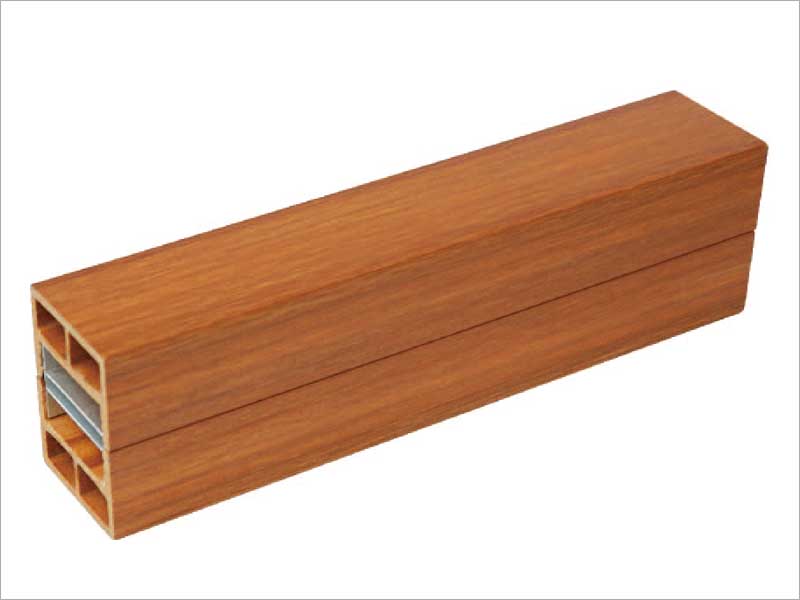

型號:H6080
尺寸:60mm * 80mm
長度:300cm
(格柵裝飾條6040*2+鋁H60*1)
適用範圍:外遮陽、小柱、小樑、欄杆等.


Product Name:H6080
Dimension:60mm * 80mm
Length:300cm
(Profile 6040*2 + Aluminum base H60*1)Range of application : Exterior Sunshade, Small Columns, Small Beams, Railing etc.

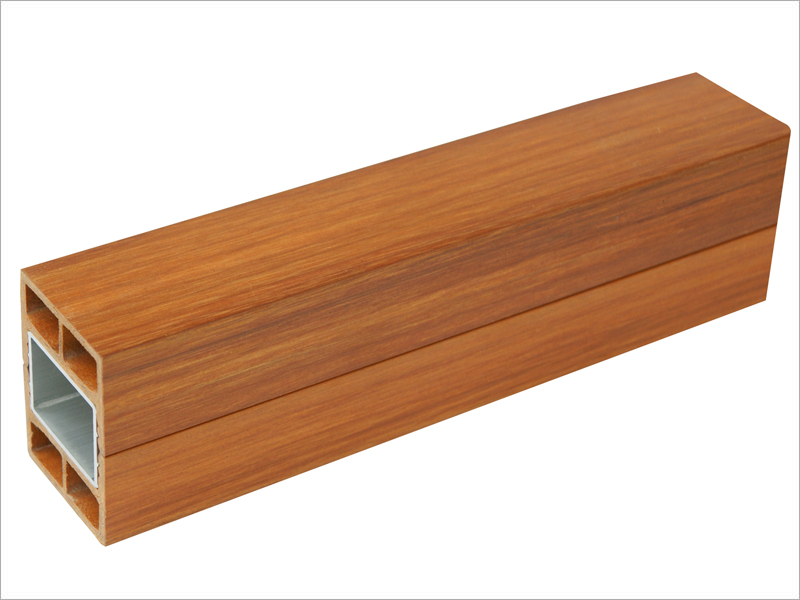

型號:S6080
尺寸:60mm * 80mm
長度:300cm
(格柵裝飾條6040*2+鋁S60*1)
適用範圍:外遮陽、小柱、小樑、欄杆等.


Product Name:S6080
Dimension:60mm * 80mm
Length:300cm
(Profile 6040*2 + Aluminum base S60*1)Range of application : Exterior Sunshade, Small Columns, Small Beams, Railing etc.

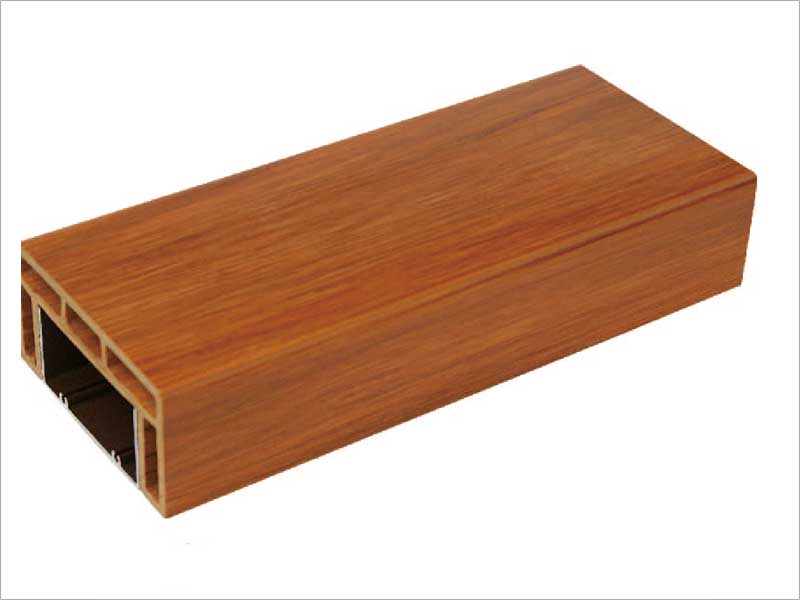

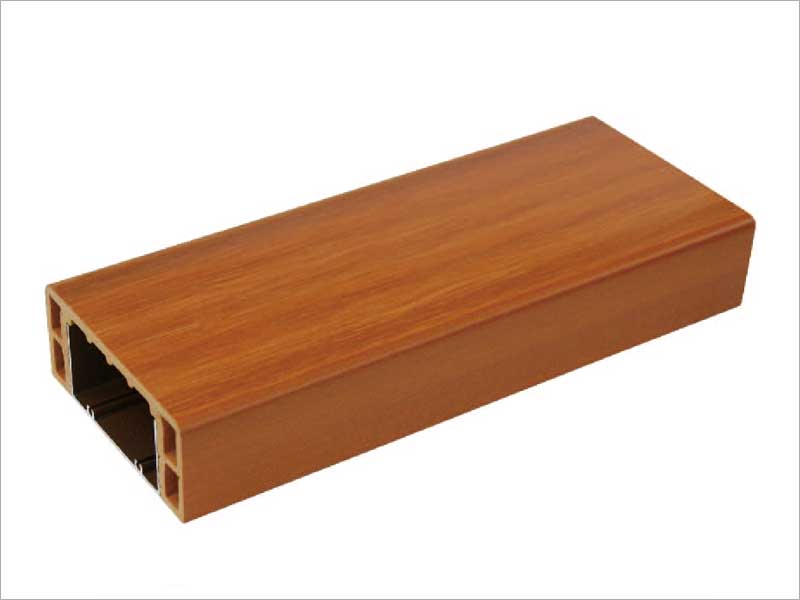

型號:M40100
尺寸:40mm * 100mm
長度:300cm
(格柵裝飾條40100*1+鋁M40*1)
適用範圍:外遮陽、造型牆、天花、拉樑等.


Product Name:M40100
Dimension:40mm * 100mm
Length:300cm
(Profile 40100*1 + Aluminum base M40*1)Range of application : Exterior Sunshade, Decorative Wall Cladding, Ceiling, Beams etc.

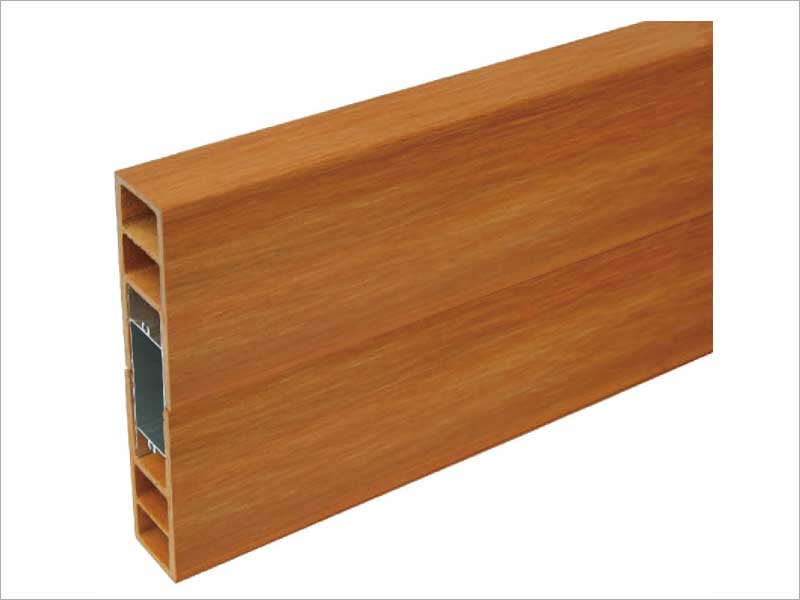

型號:H40200
尺寸:40mm * 200mm
長度:300cm
(格柵裝飾條40100*2+鋁H40*1)
適用範圍:大型遮陽系統、間隔樑柱、桌椅板面等.


Product Name:H40200
Dimension:40mm * 200mm
Length:300cm
(Profile 40100*2 + Aluminum base H40*1)Range of application : Large Sunshade System, Beam Column, Tables, Chairs and Board Surface etc.

型號:M8014
尺寸:80mm * 14mm
長度:300cm
(格柵裝飾條8014*1+鋁M80*1)
適用範圍:桌椅板面、遮陽百頁、格柵等.


Product Name:M8014
Dimension:80mm * 14mm
Length:300cm
(Profile 8014*1 + Aluminum base M80*1)Range of application : Chairs and Board Surface, Adumbral Louver, Grille etc.

型號:M6050
尺寸:60mm * 50mm
長度:300cm
(格柵裝飾條6050*1+鋁M605*1)
適用範圍:格柵、造型飾板、造型天花等.


Product Name:M6050
Dimension:60mm * 50mm
Length:300cm
(Profile 6050*1 + Aluminum base M605*1)Range of application : Grille, Decorative Trim Moldings,Ceiling Moldings, etc.

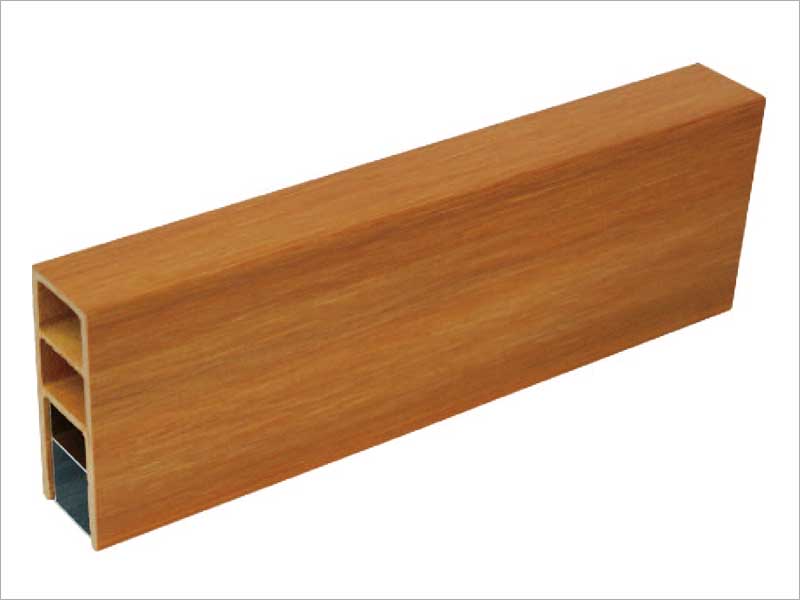

型號:S60100
尺寸:60mm * 100mm
長度:300cm
(格柵裝飾條6050*2+鋁S100*1)
適用範圍:外遮陽、小柱、小樑、欄杆等.


Product Name:S60100
Dimension:60mm * 100mm
Length:300cm
(Profile 6050*2 + Aluminum base S100*1)
Range of application : Exterior Sunshade, Small Columns, Small Beams, Railing, etc.

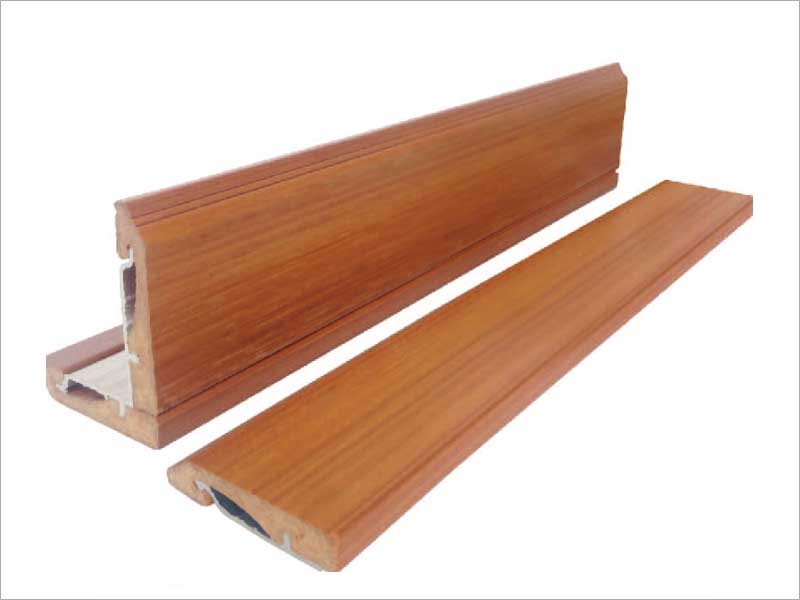

型號:L5009 / I5009
尺寸:50mm * 59mm / 50mm * 9mm
長度:300cm
(格柵裝飾條5009*2+鋁L50*1 / 格柵裝飾條5009*1+鋁I50*1)
適用範圍:收邊條、裝飾條.


Product Name:L5009 / I5009
Dimension:50mm *59mm / 50mm * 9mm
Length:300cm
(Profile 5009*2 + Aluminum base L50*1 / 5009*1 + I50*1)Range of application : Side Cover , Angle Side Cover, Decorative Trim.

型號:M12050
尺寸:120mm * 50mm
長度:300cm
(格柵裝飾條12050*1+鋁M120*1)
適用範圍:大型遮陽系統、造型牆、欄杆等


Product Name:M12050
Dimension:120mm * 50mm
Length:300cm
(Profile 12050*1 + Aluminum base M120*1)Range of application : Large Sunshade System, Decorative Wall Cladding, Railing, etc.

型號:M12060
尺寸:120mm * 60mm 長度:300cm
(格柵裝飾條12060*1+鋁M120*1)
適用範圍:大型遮陽系統、造型牆、欄杆等


Product Name:M12060
Dimension:120mm * 60mm
Length:300cm
(Profile 12060*1 + Aluminum base M120*1)Range of application : Large Sunshade System, Decorative Wall Cladding, Railing, etc.

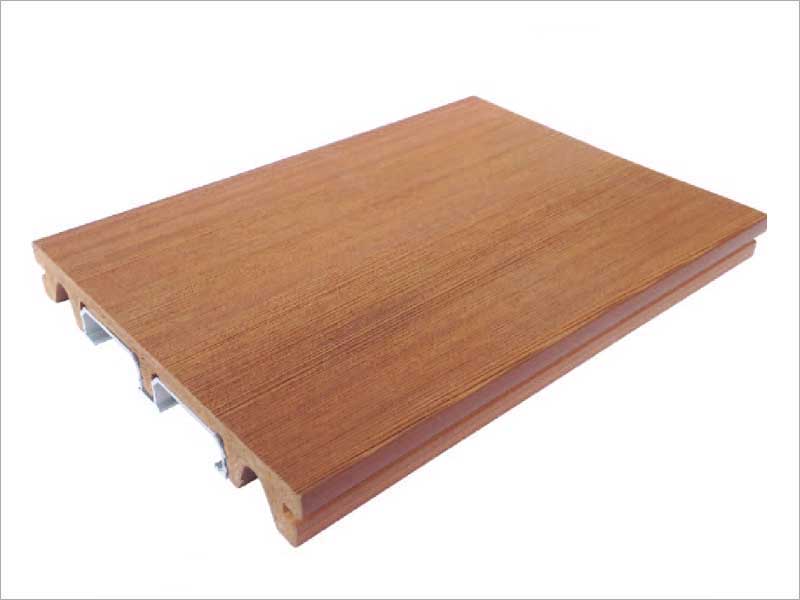

型號:MT-181
尺寸:181mm * 25mm
長度:300cm
(格柵裝飾條M181*1+鋁18T*1)
適用範圍:戶外地板、戶外牆板


Product Name:MT-181
Dimension:181mm * 25mm
Length:300cm
(Profile M181*1 + Aluminum base 18T*1)Range of application : Exterior Decking, Exterior Wall Cladding

型號:EWP-100W
尺寸:122mm * 16mm
長度:300cm
有效寬度:105mm
(格柵裝飾條EWP100*1+鋁100W*1)
適用範圍:戶外牆板


Product Name:EWP-100W
Dimension:122mm * 16mm
Length:300cm
Effective Width : 105mm
(Profile EWP100*1 + Aluminum base 100W*1)Range of application : Exterior Wall Cladding

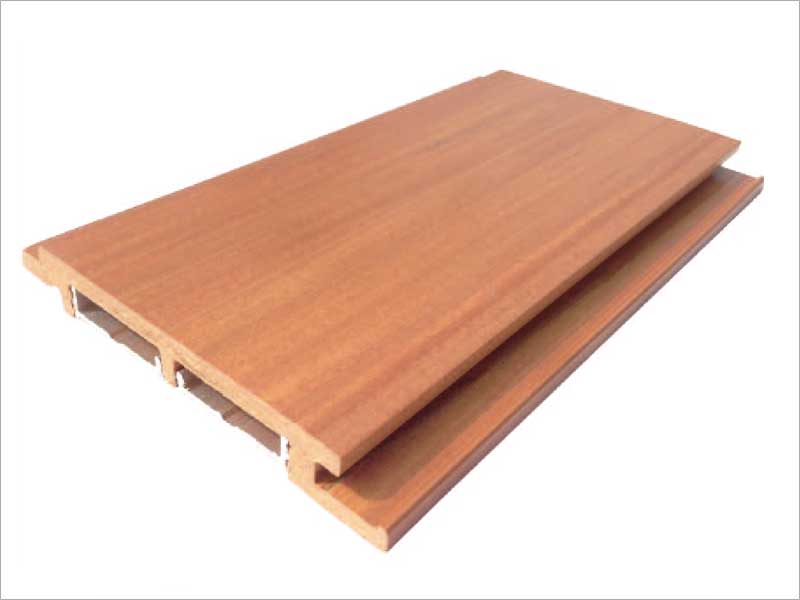

型號:EWP-180U
尺寸:203mm * 25mm
長度:300cm
有效寬度:189mm-平面式 175mm-疊式
(格柵裝飾條EWP180*1+鋁180U*1)
適用範圍:戶外牆板


Product Name:EWP-180U
Dimension:203mm * 25mm
Length:300cm
Effective Width : 189mm-Flat Installed / 175mm-Stacked Installed
(Profile EWP180*1 + Aluminum base 180U*1)Range of application : Exterior Wall Cladding
